AgieCharmilles AC Progress VP3

AgieCharmilles AC Progress Series

The AgieCharmilles AC Progress VP Series Wire Cut EDM’s are designed for enhanced speed, precision, and efficiency. The VP Series features high static rigidity, built in transducers and optical scale measuring systems, and the ability to house 2 different wires in a single-wire system. The integrated Duotec system allows you to make big contour cuts with a thicker wire, and easily swap to a thinner wire for precision in one continuous machining process.

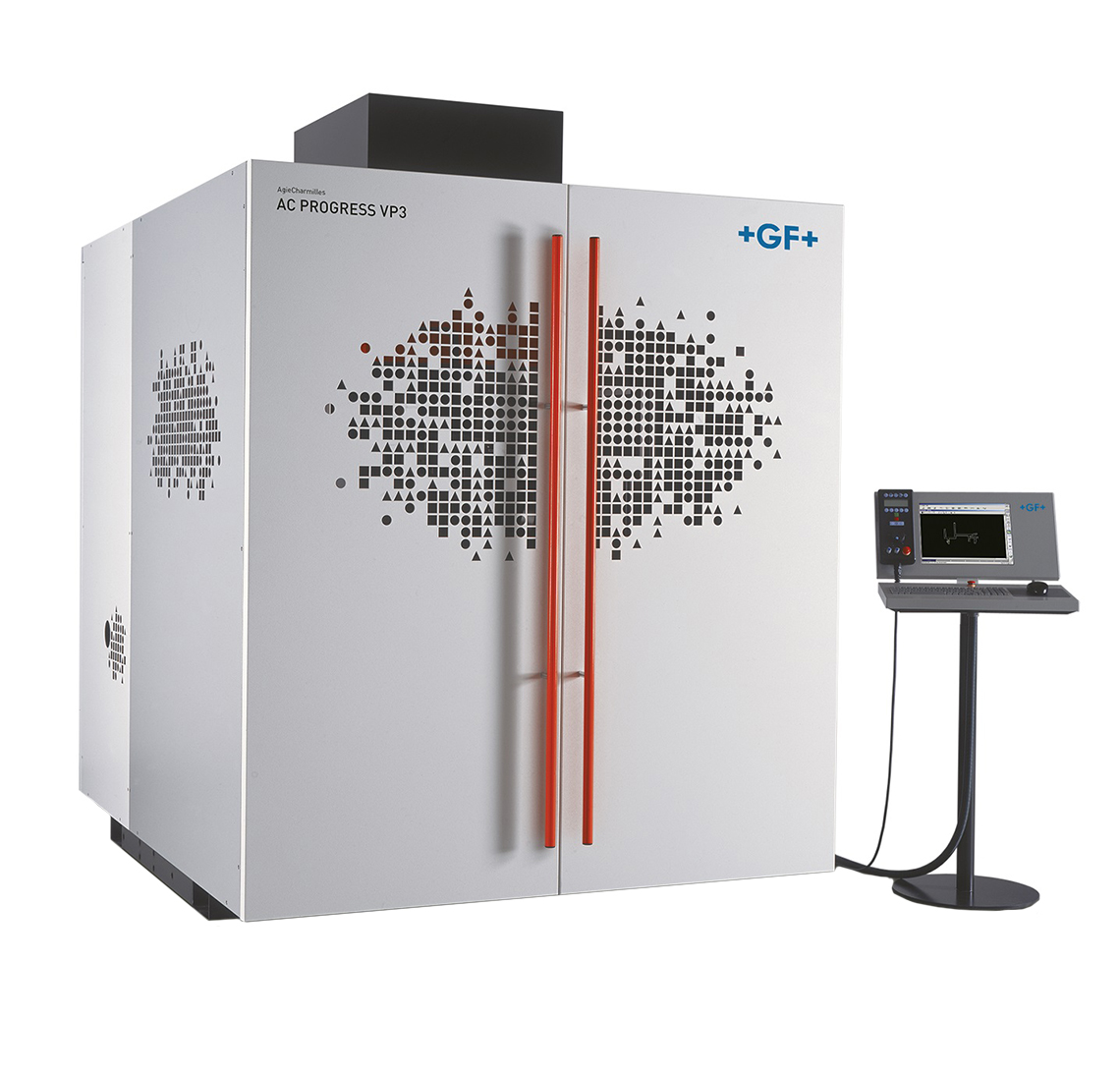

AgieCharmilles AC Progress VP3

Travels
Travel Distance X-axis
500 mm (19.7 in)
Travel Distance Y-axis
350 mm (13.8 in)
Travel Distance Z-axis
426 mm (16.8 in)
Travel Distance U-axis
±70 mm (2.7 in)
Travel Distance V-axis
±70 mm (2.7 in)
Rapid Traverse Rate X-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate Y-axis
3 m/min (118.1 in/min)
Table
Max Part Size
1050 x 650 mm (41.3 x 25.6 in)
Max Part Height
420 mm (16.5 in)
Max Load
400 kg (881.8 lbs)
Wire
Diameter
0.15-0.33 mm (0.006-0.013 in)
Max Taper
30°/100 mm (3.9 in)
Best Roughness Standard
< 0.1 µm Ra (< 4 µin Ra)
Machine Size
Length
3300 mm (129.9 in)
Height
2849 mm (112.2 in)
Width
2300 mm (90.5 in)
