M0617

Cobot Series

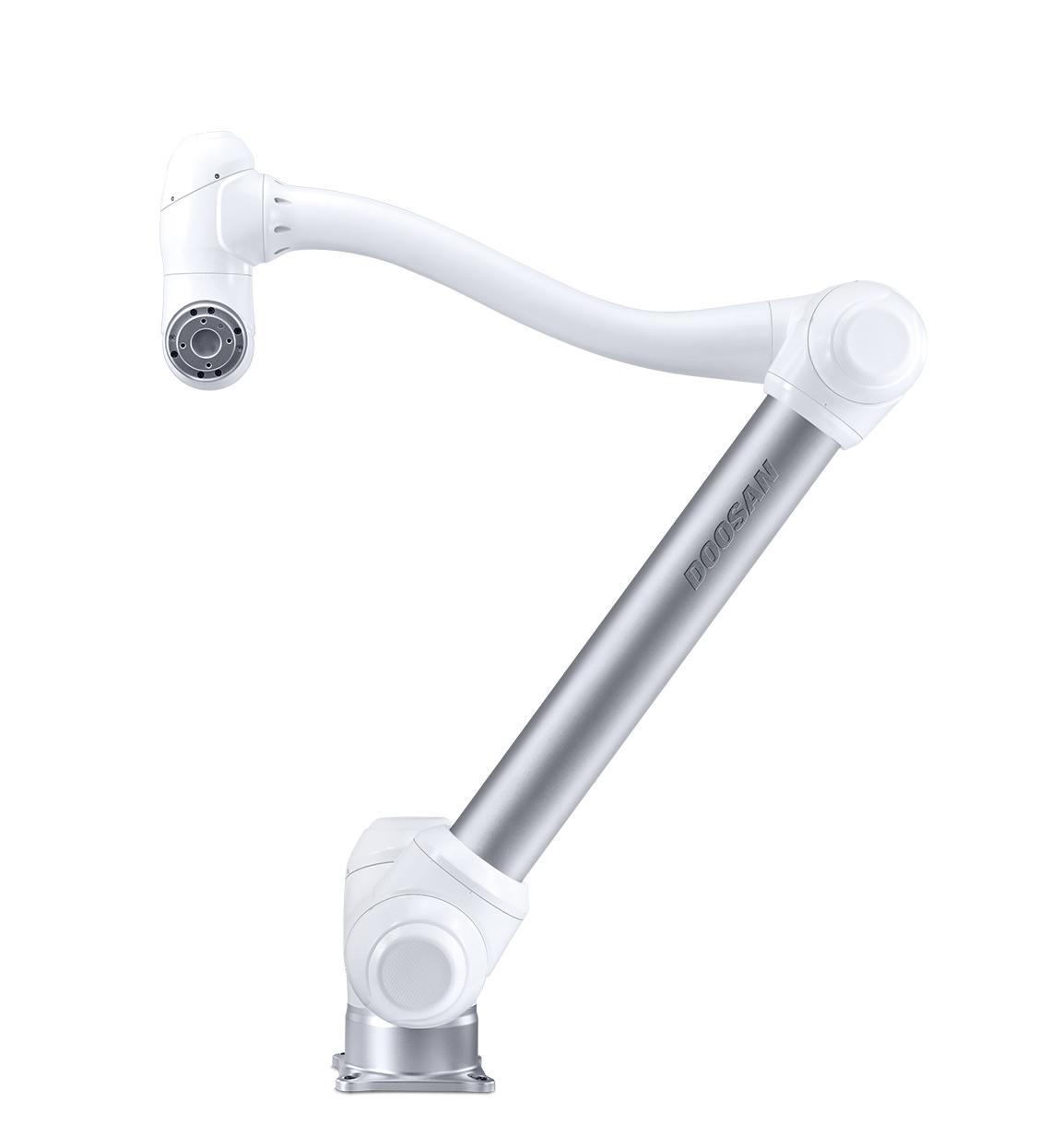

Doosan Robotics offers a variety of cobots designed to handle complex tasks with precision and efficiency. Doosan’s cobot features highly sensitive torque sensors capable of detecting obstructions in the workspace. This allows people to work safely alongside the cobot. The cobot boasts 6-axis articulation, light weight structure, up to 1,700 mm (66.9 in.) reach, and is capable of being mounted in a variety of locations including walls, roofs, and floors.

M0617

Robot Arm
Reach
1,700 mm (66.9 in.)
Weight
34 kg (75 lbs.)
Max Robot Load
6 kg (13.2 lbs.)
Tooling
Speed
1 m/s
Movement
Joint 1 Range/Speed
±360°;100°/sec
Joint 2 Range/Speed
±360°;100°/sec
Joint 3 Range/Speed
±165°;150°/sec
Joint 4 Range/Speed
±360°;225°/sec
Joint 5 Range/Speed
±360°;225°/sec
Joint 6 Range/Speed
±360°;225°/sec
