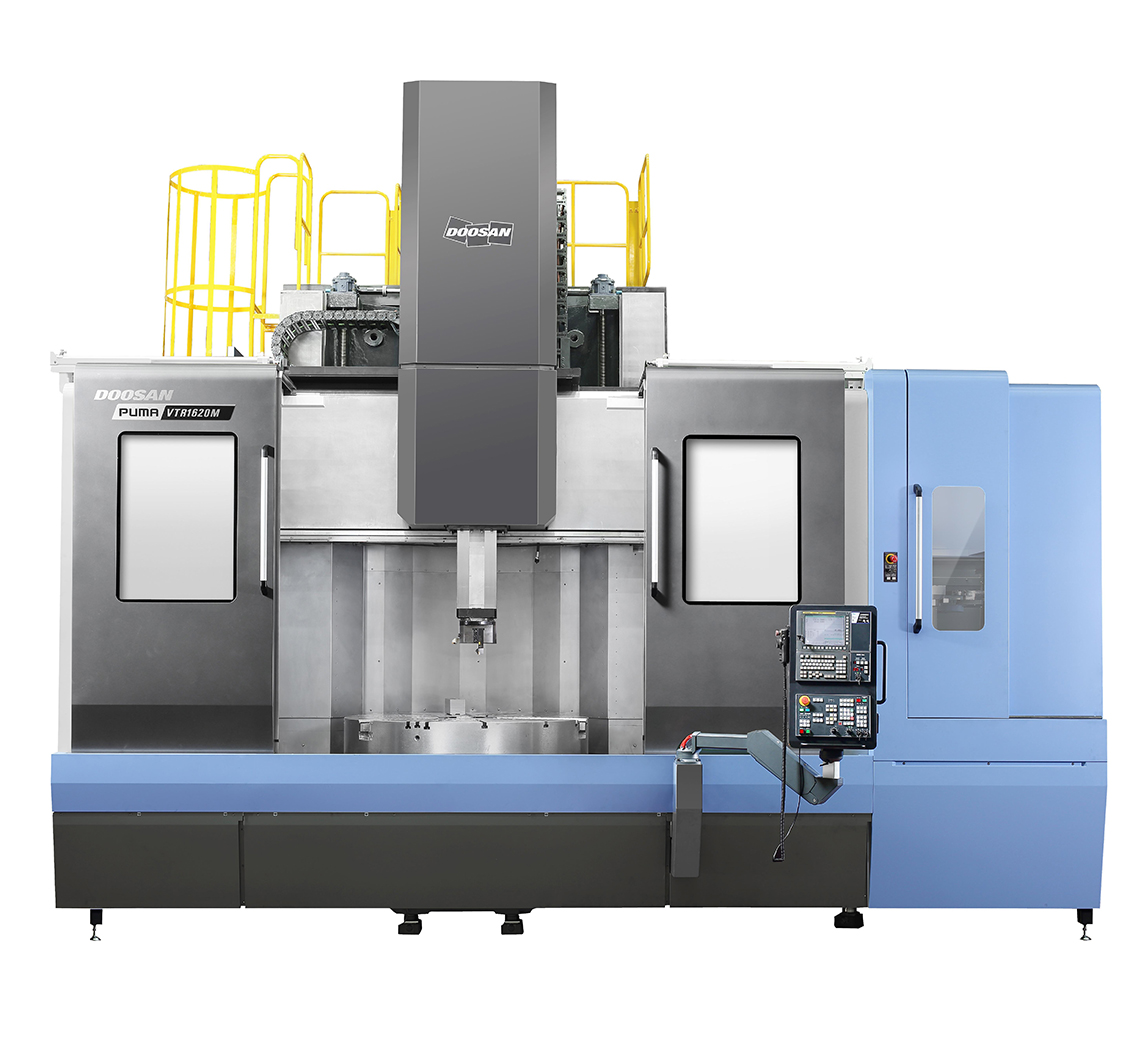

PUMA VTR1620M

PUMA VTS/VTR Series

If you want to compete, you have to get the turning center that beats the competitors. The single ram-type spindle PUMA VTS and VTR turning series have the highest cutting capacity among its competitors. Whether you have to handle a 40” chuck up to a 63” chuck, the PUMA VTS and VTR series provides optimum durability by including box guideways on all axes. Additionally, the expansive diameter of the cross-taper roller bearings in the spindle ensures high rigidity and accuracy for heavy duty machining applications.

PUMA VTR1620M

Travels
Travel Distance X-axis
2220 mm (87.4 in)
Travel Distance Z-axis (RAM)
1200 mm (47.2 in)
Rapid Traverse X-axis
12 m/min (472 in/min)
Rapid Traverse Z-axis
10 m/min (394 in/min)
Capacity
RAM Size
260 x 260 mm (10.2 x 10.2 in)
Max Turning Diameter
⌀2000 mm (78.7 in)
Max Turning Length
1800 mm (70.9 in)
Max Table Load
10000 kg (22046 lbs)
Spindle to Floor Distance
1245 mm (49 in)
Spindle
Speed
300 rpm
Power
45 kW (60 Hp)
Torque
38373 Nm (28302 ft-lbs)
Tooling
Shank
BMT-KEY
Changer Capacity
15
Max Tool Length
500 mm (19.7 in)
RAM Milling Tool Speed
3000 rpm
RAM Milling Tool Power
15 kW (20 Hp)
RAM Milling Tool Torque
674 Nm (497 ft-lbs)
Machine Size
Length
6500 mm (256 in)
Height
6303 mm (248 in)
Width
4240 mm (167 in)
