The DNM 5AX Series is a game changer whether you are machining full 5-axis or 4+1 prismatic parts. 5-axis is the future of manufacturing. By reducing setups, increasing throughput and efficiency, you are expanding your opportunities, leading to higher profits.
You are here

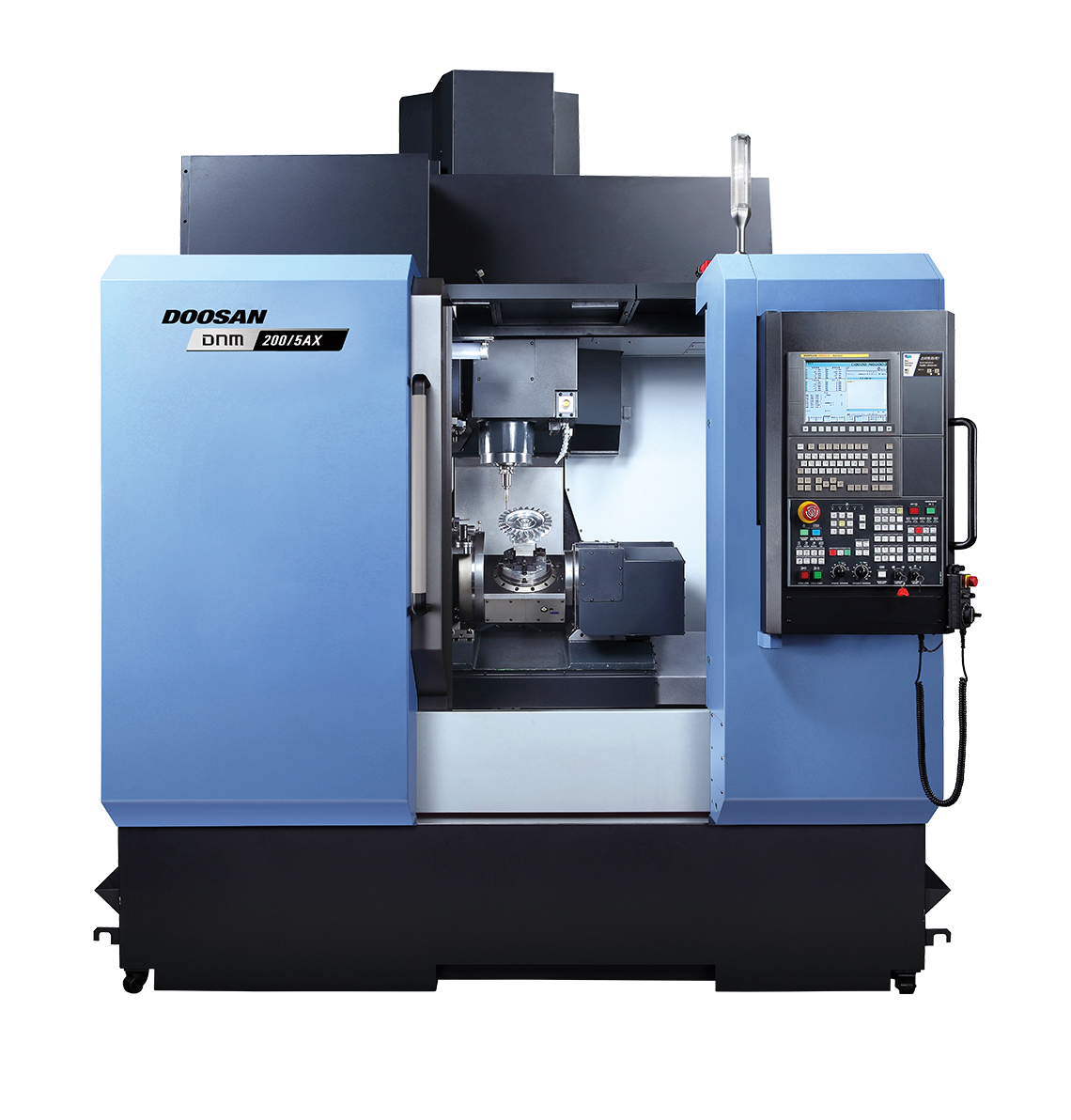

DNM 200/5AX
DNM 5AX Series
DNM 200/5AX
Travels
Travel Distance X-axis
|
400 mm (15.7 in)
|
Travel Distance Y-axis
|
435 mm (17.1 in)
|
Travel Distance Z-axis
|
500 mm (19.7 in)
|
Travel Distance A-axis
|
+30°, -120°
|
Travel Distance C-axis
|
360°
|
Rapid Traverse X-axis
|
36 m/min (1417 in/min)
|
Rapid Traverse Y-axis
|
36 m/min (1417 in/min)
|
Rapid Traverse Z-axis
|
30 m/min (1181 in/min)
|
Rotary Table
Table Size
|
⌀200 mm (7.8 in)
|
Max Part Diameter
|
⌀300 mm (11.8 in)
|
Max Part Height
|
200 mm (7.9 in)
|
Max Load
|
40 kg (88 lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
18.5 kW (25 Hp)
|
Torque
|
117 Nm (86 ft-lbs)
|
Spindle to Table Distance
|
30-530 mm (1.2-20.9 in)
|
Tooling
Shank
|
BIG PLUS CAT 40
|
Changer Capacity
|
30
|
Max Diameter
|
⌀80/125 mm (3.1/4.9 in)
|
Max Length
|
300 mm (11.8 in)
|
Machine Size & Weight
Length
|
2,836 mm (111.7 in.)
|
Height
|
3,300 mm (129.9 in.)
|
Width
|
2,465 mm (97 in.)
|
Weight
|
5,500 kg (12,125 lbs.)
|
